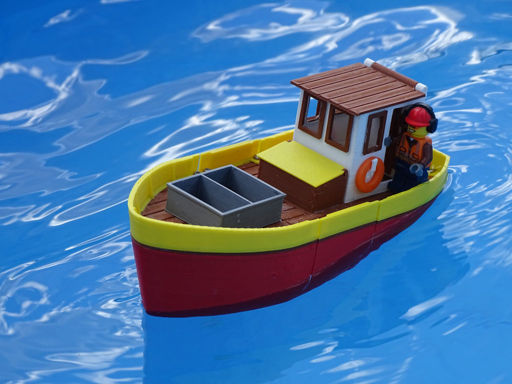

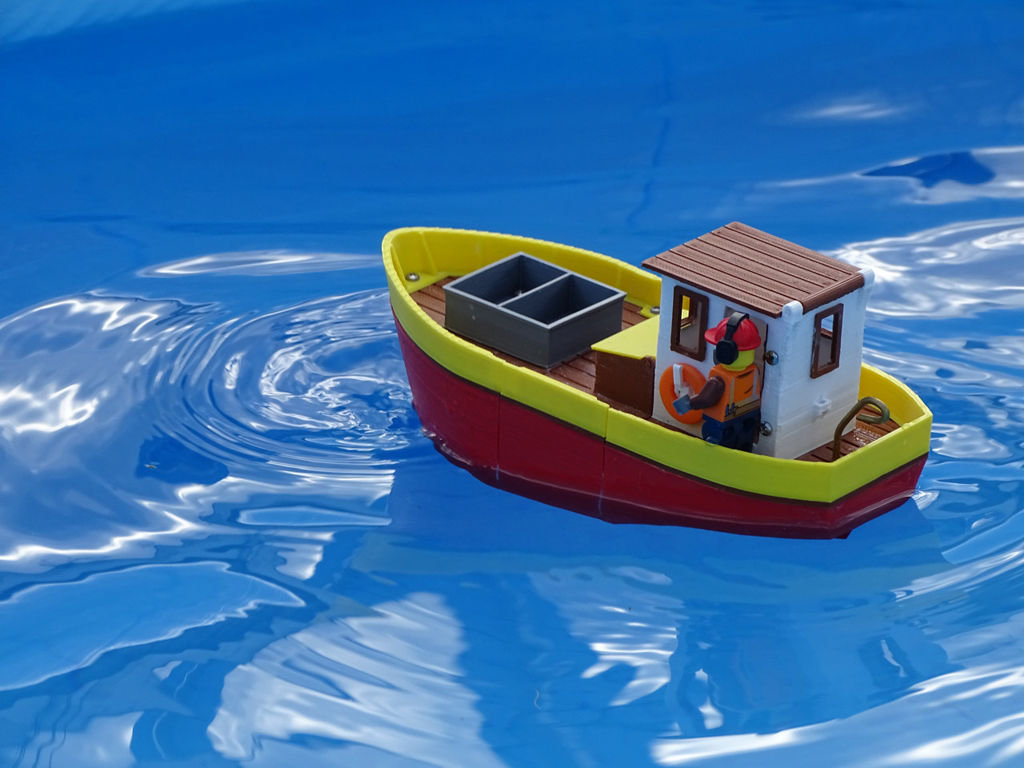

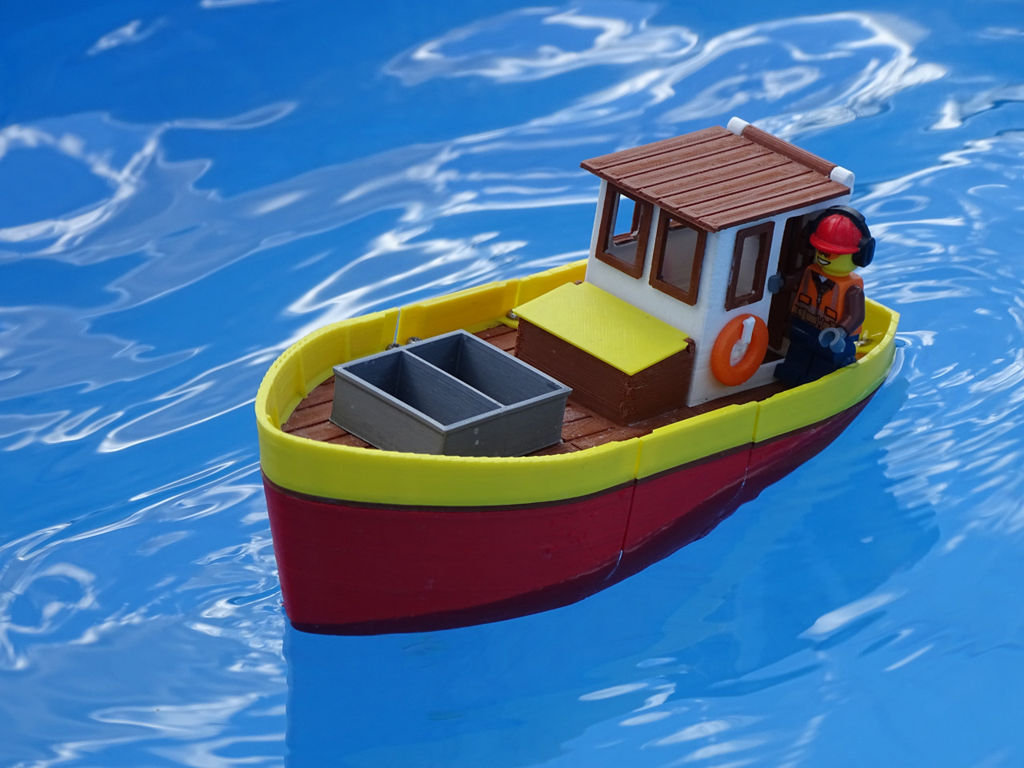

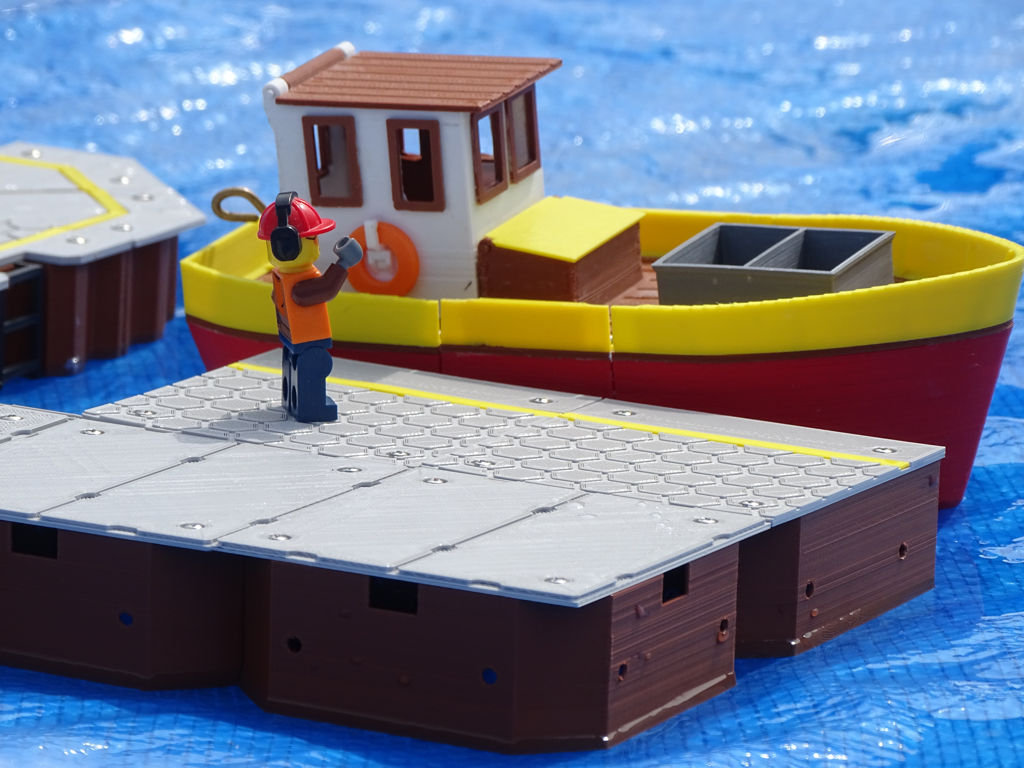

Small fishing boat

Small fishing boat - Assembly manual

Needed parts or materials (suggested, you can use other matches parts)

• glue (nedeed to glue 2 stern elements)
• 2 very short teflon tubes (2 mm inner diameter, 4 mm outer) to seal the propeller shaft and rudder
• 4 sets M2.5x6 screw+nut
• 28 pieces M2.2x6.5 screw (DIN7981)
• 1 metal (we recommend brass) rod for propeller shaft (2 mm diameter, 40 mm length)
• 1 metal (we recommend brass) rod for rudder shaft (2 mm diameter, 90 mm length)
• several short pieces of filament 1.75 mm for hinges

Introduction

• We recommend using PLA filament, nozzle 0.4 mm and layer height 0.2 mm, but you can test other settings.
• All files are in print-ready positions, you don't have to rotate it on your slicer.
• Print all elements with 100% filling, except for the lifebuoy.stl (25% filling).
• You will find all wheelhouse windows in the windows-all.stl file, but you can print each one separately from window-***.stl files.
• There are two versions of propeller: propeller-real.stl and propeller-easy.stl. The first version has real shape but is difficult to print, the second version is very easy to print but after printing you have to put it in hot water and manually bend the propeller blades.
• There are two versions of lifebuoy holder: lifebuoy-holder-thin.stl and lifebuoy-holder-bold.stl. Try the lifebuoy-holder-bold.stl version first, if the element is too large and does not fit into the holes, select lifebuoy-holder-thin.stl.
• Glue the two parts of the stern (hull-stern-A.stl and hull-stern-B.stl) firmly together, check carefully for holes.
• After placing the propeller and rudder shafts check the hull is not leaking.
  • If the shafts are leaking you can use oil or grease.
  • If the hull leaks you can paint or varnish it.
• Short ships may need to be trimmed by the stern. Before screwing down the deck you can use some ballast to balance the ship.
• Use pieces of filament 1.75 mm to attach doors and hatches.

Assembly manual movie

Click to see assembly manual on Youtube.
Turn on subtitles (if available) to see part names. Do not use YouTube auto translate.
You can pause the movie and skip frames using "<" and ">" buttons from your keyboard.

License

This model is free to use.

You can:

• print an unlimited number of models,
• modify and print modified files,
• print models for a gift,
• use printed models for free education.

You can not:

• use models for earn money,
• sell printed models,
• sell any stl files (original or modified),
• publish or distribute any stl files.
